Climate Chambers, Production Chambers, Temperature Chambers |
CT |
358L |
TENNEY |
TUJR |
16 |
11 |
12 |
|

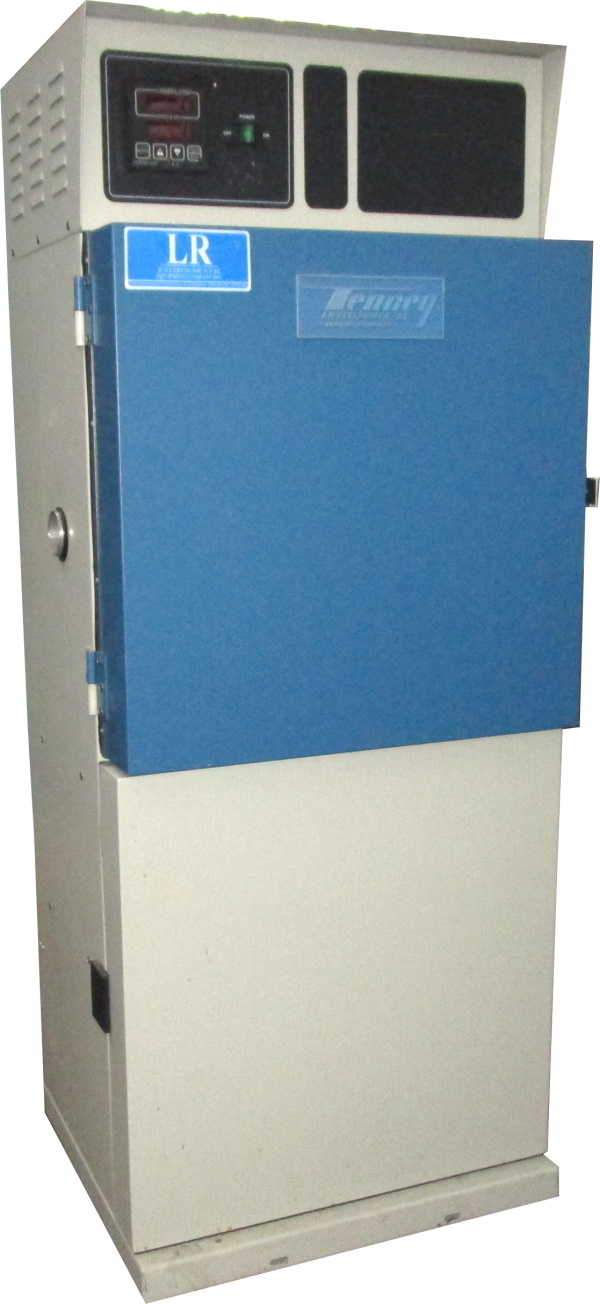

Tenney Temperature Chamber
Environmental Chamber Model #TUJR
SPECS:
I.D. 16"W X 11"D X 12"H
O.D. 25"W X 21"D X 64"H
Temperature Range: -70 to +170 Deg. C - Air Cooled
Watlow Programmer
Environmentally Friendly Refrigerants
Stainless Steel Interior
Includes Castors For Easy Movement
1 Shelf - Additional Shelves Available - Inquire
2X 2" Dia. Opposing Side Feed-Thru Ports
Power: 120V, 1Ph, 20 Amps
Stock #358L
This Environmental Test Chamber Does Not Need Repainting For Quicker Delivery
|
Spec sheet:
|
|
|
Climate Chambers, Production Chambers, Temperature Chambers |
CT |
320L |
TENNEY |
TJR |
16 |
11 |
12 |
|

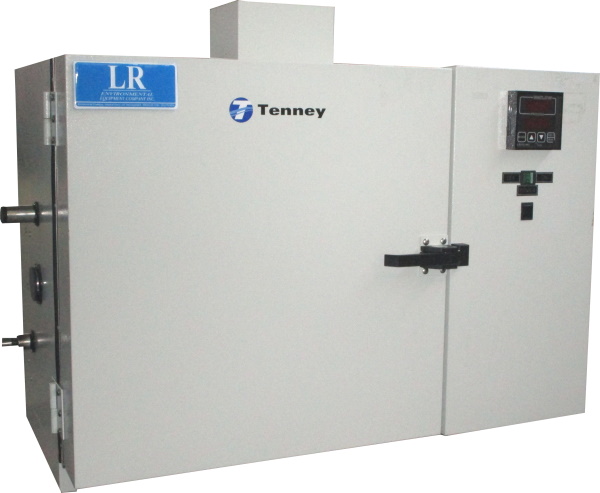

Tenney Temperature Chamber Model TJR
SPECS:
I.D. 16"W X 11"D X 12"H
O.D. 37"W X 23"D X 30"
Temperature Range: -70 to +170 Deg. C - Air Cooled
Watlow PM Series Programmer With Limit Control
Environmentally Friendly Refrigerants
Stainless Steel Interior
Includes 1 Shelf, 2" Dia. Side Feed-Thru Port
No Repaint Needed For Quicker Delivery
Power: 120V, 1Ph, 20 Amps
Stock #320L
|
Spec sheet:
Manual:
|
|
|
Climate Chambers, Production Chambers, Temperature Chambers |
CT |
291L |
TENNEY |
TUJR |
16 |
11 |
12 |
|

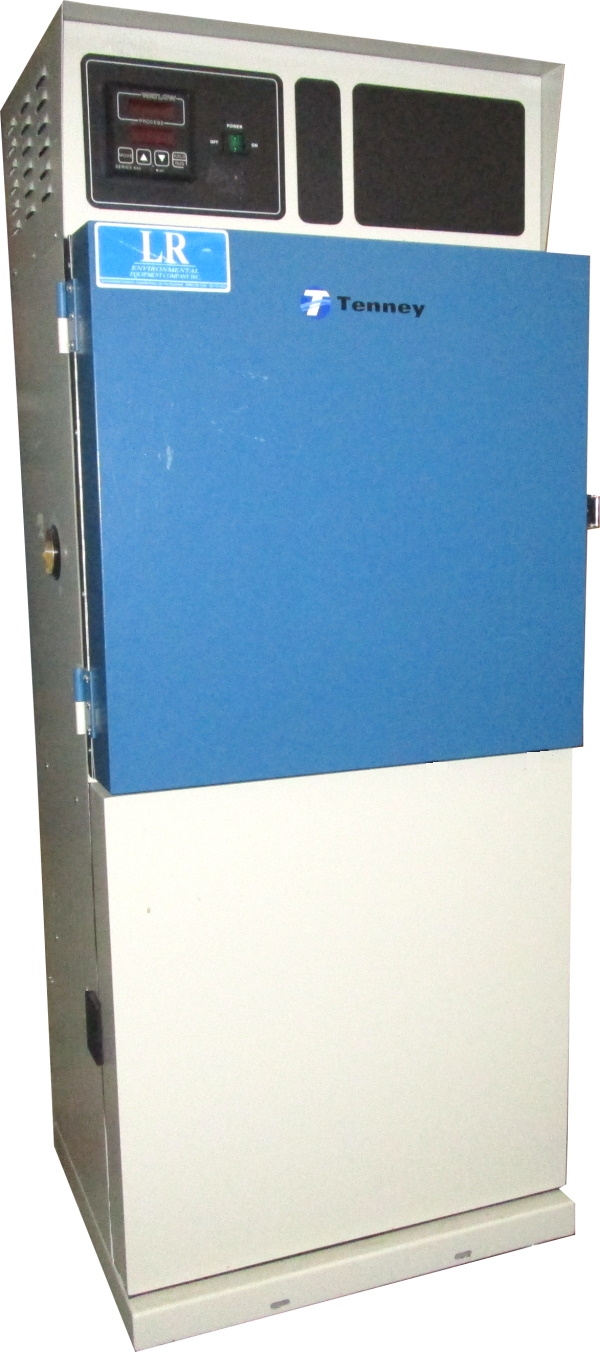

Tenney Temperature Test Chamber Model #TUJR
SPECS:
I.D. 16"W X 11"D X 12"H
O.D. 25"W X 21"D X 64"H
Temperature Range: -70 to +170 Deg. C - Air Cooled
Watlow EZ-Zone Controller
Environmentally Friendly Refrigerants
Stainless Steel Interior
Has Castors For Easy Movement, 1 FREE Shelf
ADDITIONAL SHELVES AVAIL - PLEASE INQUIRE
2X 3" Dia. Opposing Side Feed-Thru Ports
Power: 120V, 1Ph, 20 Amps
Stock #291L
|
Spec sheet:
|
|
|
Climate Chambers, Production Chambers, Temperature Chambers |
CT |
237L |
TENNEY |
TUJR |
16 |
11 |
12 |
|

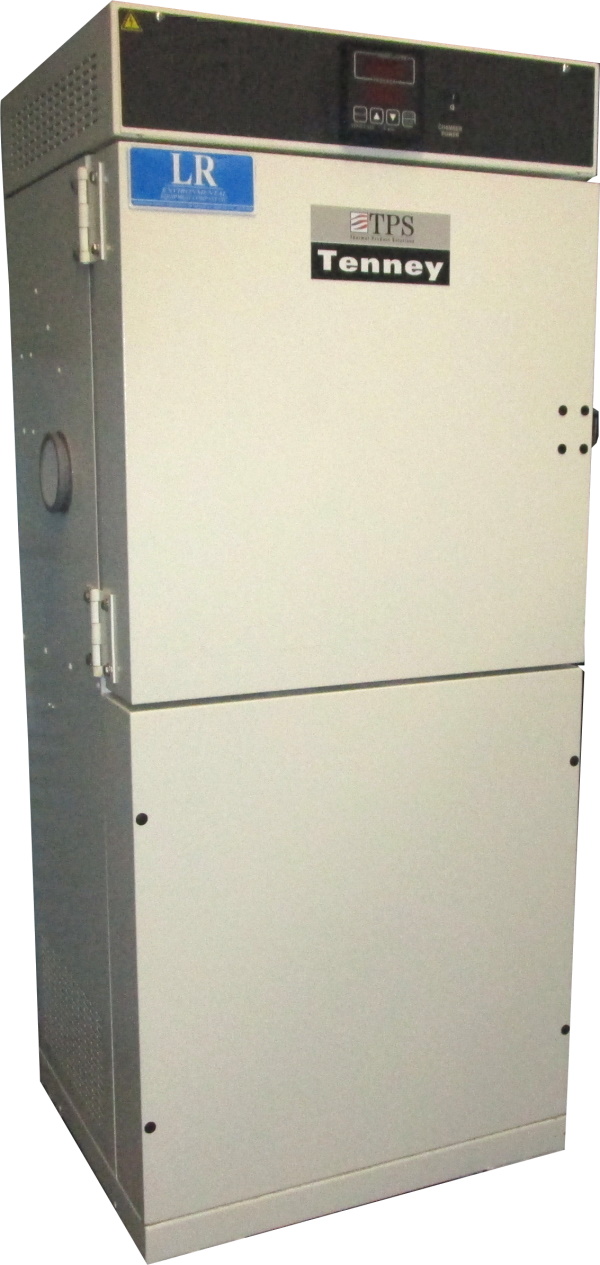

Tenney Temperature Test Chamber Model TUJR
SPECS:
I.D. 16"W X 11"D X 12"H
O.D. 25"W X21"D X 64"D
Temperature Range: -70 to +170 Deg. C - Air Cooled
Programmer, Environmentally Friendly Refrigerants
R404 - SUVA95
Stainless Steel Interior
Castors For Easy Movement, 2" Dia. Side Feed-Thru Port
1 FREE Shelf
Power: 120V, 1Ph, 20 Amps
Stock #237L
|
Spec sheet:
|
|
|
Climate Chambers, Production Chambers, Temperature Chambers, Bench Top Temperature Chambers |
CT |
239L |
TENNEY |
TJR |
16 |
11 |
12 |
|

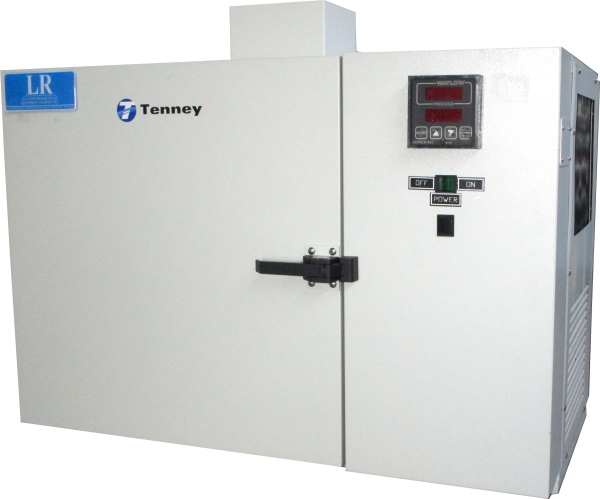

TENNEY BENCH TOP TEMPERATURE CHAMBER
MODEL #TJR
SPECS:
I.D. 16"W X11"D X 12"H
O.D. 36.5"H X 23"D X 61"H
Temperature Range: -70 to +170 Deg. C
Watlow Programmer
Environmentally Friendly Refrigerants
Stainless Steel Interior
Includes Stand, 2" Dia. Side Feed-Thru Port
Power: 120V, 1Ph, 10 Amps
Stock #239L
|
Spec sheet:
Manual:
|
|
|
Climate Chambers, Production Chambers, Temperature Chambers |
CT |
286L |
TENNEY |
TUJR |
16 |
11 |
12 |
|
Tenney Temperature Test Chamber Model #TUJR
SPECS:
I.D. 16"W X 11"D X 12"H
O.D. 22"W X 26"D X 61"H
Temperature Range: -75 to +200 Deg. C - Air Cooled
Has Watlow F4 Programmer, RS-232
Environmentally Friendly Refrigerants
Stainless Steel Interior
Includes Viewing Window, Interior Light, Castors
(Shelves Avail If Required)
3.5" Dia. Side Feed-Thru Port
Power: 120V, 16 Amps
Stock #286L
|
Spec sheet:
|
|
|
Climate Chambers, Production Chambers, Temperature Chambers |
CT |
175L |
TENNEY |
TUJR |
16 |
11 |
12 |
|
Tenney Temperature Chamber Model #TUJR
HAS COMPLETED CHECK OUT - READY TO SHIP!!
SPECS:
I.D. 16"W X 11"D X 12"H
O.D. 31"W X 22"D X 60"H
Temperature Range: -70 to +180 Deg. C - Air Cooled
Has GN2 Purge
Watlow Model F4 Programmer
Separate Over & Under Temperature Limit Control
Environmentally Friendly Refrigerants
Stainless Steel Interior
Includes Castors, 1 Free Shelf - Add'l Shelves Available
2" Dia. Feed-Thru Port
REFURBISHED - PARTS & LABOR WARRANTY
Power: 120V, 1Ph, 20 Amps
Stock #175L
|
Spec sheet:
|
|
|
Climate Chambers, Production Chambers, Temperature Chambers |
CT |
176L |
TENNEY |
TUJR |
16 |
11 |
12 |
|
Tenney Temperature Chamber Model #TUJR
CAN BE READY TO SHIP IN JUST A FEW DAYS!
SPECS:
I.D. 16"W X 11"D X 12"H
O.D. 31"W X 22"D X 60"H
Temperature Range: -70 to +180 Deg. C - Air Cooled
Has GN2 Purge
Watlow Model F4 Programmer
Separate Over & Under Temperature Limit Control
Environmentally Friendly Refrigerants
Stainless Steel Interior
Includes Castors, 1 Free Shelf - Add'l Shelves Available
REFURBISHED - PARTS & LABOR WARRANTY
Power: 120V, 1Ph, 20 Amps
Stock #176L
This Tenney Chamber can be shipped fairly quickly, does not need to be repainted for quicker delivery.
|
Spec sheet:
|
|
|
Climate Chambers, Production Chambers, Temperature Chambers, Bench Top Temperature Chambers |
CH |
850J |
TENNEY |
BTRC |
20 |
20 |
22 |
|
Tenney Temperature Humidity Test Chamber
Model #BTRC With Upgraded Boiler System
SPECS:
I.D. 20"W X 20"D X 22"H
O.D. 62"W X 32"D X 43"H
Temperature Range: -70 to +170 Deg. C - Air Cooled
Humidity Range: 20% to 95%
Watlow Model #F4 Programmer
Temperature Limit Control
Environmentally Friendly Refrigerants, Stainless Steel Interior
2" Dia. Side Feed-Thru Port, 1 Shelf
OPTIONAL STAND W/CASTORS AVAILABLE
Power: 230V, 1Ph, 30 Amps
Stock #850J
|
Spec sheet:
|
|
|
Climate Chambers, Production Chambers, Temperature Chambers |
CT |
424J |
TENNEY |
T6S |
22 |
21 |
22 |
|
Tenney Temperature Test Chamber Model #T6S
TENNEY TEST CHAMBER SPECS:
I.D. 22"W X 21"D X 22"H
O.D. 34"W X 41"D X 72"H
Temperature Range: -30 to +170 Deg.
Watlow F4T Touchscreen Control
With Charting And Graphing Capabilities
Temperature Limit Control
Environmentally Friendly Refrigerants
Stainless Steel Interior
2X 4" Dia. Side Feed-Thru Ports
Viewing Window, Interior Light, Castors, Shelf
Power: 208V, 1Ph, 30 Amps
Stock #424J
|
Spec sheet:
|
|
|
Climate Chambers, Industrial Ovens, Production Chambers, Temperature Chambers |
CT |
321J |
TENNEY |
T-64SPL |
48 |
48 |
48 |
|
Tenney Temperature Test Chamber Model #T-64SPL
64 CUBIC FT. INTERIOR
SPECS:
I.D. 48"W X 48"D X 48"H
O.D. 72"W X 81"D X 94"H
New Compressors
Multiple New Refrigeration Parts
New Water Cooled Condenser
New Watlow F4T Touchscreen Programmer
With Charting And Graphing Capabilities
Temperature Range: -70 to +170 Deg. C (Water Cooled)
Environmentally Friendly Refrigerants
Viewing Window, Interior Light, Shelf
2 8" X 12" Side Feed-Thru Ports
Power: 480V, 3Ph, 60 Amps
INCLUDES OUR 100% PARTS AND LABOR WARRANTY
Stock #321J
|
Spec sheet:
|
|
|
Climate Chambers, Production Chambers, Temperature Chambers |
CT |
322J |
TENNEY |
T-64SPL |
48 |
48 |
48 |
|
Tenney Temperature Test Chamber Model #T-64SPL
64 CUBIC FT. INTERIOR
SPECS:
I.D. 48"W X 48"D X 48"H
O.D. 72"W X 81"D X 94"H
New Watlow Model F4T Touchscreen Programmer
With Charting And Graphing Capabilities
Temperature Limit Control
Temperature Range: -70 to +170 Deg. C (Water Cooled)
Environmentally Friendly Refrigerants
New Compressors - New Refrigeration Components
New Water Cooled Condenser
Viewing Window, Interior Light, Shelf
2X 8" X 12" Side Feed-Thru Ports
Power: 480V, 3Ph, 60 Amps
INCLUDES OUR 100% PARTS AND LABOR WARRANTY
Stock #322J
|
Spec sheet:
|
|
|
Climate Chambers, Production Chambers, Temperature Chambers |
CT |
454H |
TENNEY |
T-30SPL |
36 |
40 |
36 |
|
Tenney Temperature Test Chamber Model #T-30SPL
30 CUBIC FT. INTERIOR
SPECS:
Internal Dimensions: 36"W X 40"D X 36"H
External Dimensions: 48"W X 65"D X 85"H
Temperature Range: -70 to +170 Deg. C (Air-Cooled)
Programmable Controller
Over and Under Temperature Protection
Stainless Steel Interior
Environmentally Friendly Refrigerants
Includes Window, Light, Castors, 1 Shelf
1X 2" Side Feed-Thru Port
Power: 480V, 3Ph, 50 Amps
Stock #454H
|
Spec sheet:
Manual:
|
|
|
Climate Chambers, Production Chambers, Temperature Chambers, Bench Top Temperature Chambers |
CT |
433H |
TENNEY |
T-5-2-100350 |
21 |
21 |
20 |
|
Tenney Temperature Chamber Model #T-5-2-100350
I.D. 21"W X 21"D X 20"H
O.D. 41"H X 33"D X 76"H
Temperature Range: -70 to +170 Deg. C (Air-Cooled)
Over and Under Temperature Protection
New Watlow Programmable Control
New Compressors
New Casters
Circulation System Upgraded
Stainless Steel Interior
4" Side Feed-Thru Port
Power: 220V, 1Ph, 35 Amps
Note: Does Not Include Window
Stock #CT-433H
|
|
|
|
Temperature Chambers |
CT |
356H |
TENNEY |
TTC |
24 |
26 |
28 |
|
Tenney Temperature Chamber Model TTC- Floor Standing Style
Internal Chamber Dimensions: 24-(wide) x 26-(deep) x 28-(high)
Temperature Range: -70C to +170C (cascade air cooled compressors)
Watlow Model 982 Programmable Temperature Controller
Over and Under Temperature Protection Controller
6- Diameter Feed-Through Port in Left Wall
Shelf Included; Castors for Easy Movement of Chamber
New Environmentally Friendly Refrigerants
Power: 208V 40A (can be converted to 230V - Please inquire)
Stock #CT-356H
|
|
|
