Used Temperature Chambers

Refurbished and customized

Temperature Change is one of the most common stresses applied to a product. Temperature Cycling, also known as Thermal Cycling, in a Temperature Chamber is the process of subjecting a product to multiple cycles of changing temperatures.

The Temperature Chamber can be programmed for predetermined extremes to achieve fatiguing and identifying latent defects over a period of time. The low Temperatures achieved with Temperature Chambers are achieved using various methods of refrigeration. Our Experienced Sales Engineers can provide all the information you need to determine what kind of Temperature Chamber you will need for your Thermal Cycling tests.



Category Class Stock No. Manufacturer Model No. W
in.
D
in.
H
in.
Description Photo
Temperature Chamber CT 228J THERMOTRON S-4 20 20 20 Thermotron Temperature Test Chamber Model #S-4,
I.D. 20"W X 20"D X 20"H,
O.D. 31"W X 41"D X 79"H,
Temperature Range: -70 to +170 Deg. C (Air Cooled)
Programmable Control, Over and Under Temperature Protection,
Stainless Steel Interior, Environmentally Friendly Refrigerants,
Includes Viewing Window, Castors, Shelf,
Power: 230V, 1Ph, 30 Amps,
Stock #228J




Temperature Chamber CT 227J THERMOTRON S-4 20 20 20 Thermotron Temperature Test Chamber Model S-4,
I.D. 20"W X 20"D X 20"H,
O.D. 31"W X 41"D X 79"H,
Temperature Range: -70 to +170 Deg. C (Air Cooled),
Programmable Control,
Power: 230V, 1Ph, 30 Amps,
Stock #227J




Temperature Chamber CT 231J TENNEY TJR 16 11 12 Tenney Temperature Test Chamber Model TJR,
I.D. 16"W X11"D X 12"H,
O.D. 37"W X 23"D X30"H,
Temperature Range: -70 to +170 Deg. C (Air Cooled)
Programmable Control, Stainless Steel Interior,
Environmentally Friendly Refrigerants,
1X 2" Dia. Side Feed-Thru Port, Includes 1 Shelf
Power: 120V, 1Ph, 18 Amps,
Stock #231J




Temperature Chamber CT 230J TENNEY TJR 16 11 12 Tenney Temperature Test Chamber Model TJR,
I.D. 16"W X11"D X 12"H,
O.D. 37"W X 23"D X30"H,
Temperature Range: -70 to +170 Deg. C (Air Cooled)
Programmable Control, Stainless Steel Interior,
Environmentally Friendly Refrigerants,
1X 2" Dia. Side Feed-Thru Port,
Power: 120V, 1Ph, 18 Amps,
Stock #230J




Temperature Chamber CT 197J THERMOTRON S-16C 30 30 30 Thermotron Temperature Test Chamber Model S-16C,
I.D. 30"W X 30"D X 30"H,
O.D. 50"W X47"D X 82"H,
Temperature Range: -70 to +170 Deg. C,
Over and Under Temperature Protection,
Environmentally Friendly Refrigerants, Stainless Steel Interior,
2X 5.75 Door Feed Thru Ports, 1X 4" Dia. Port, 1X 4.5" Dia. Port,
Includes Window, Interior Light, Castors, 1 Shelf,
Power: 208/230V, 1Ph, 42 Amps,
Stock #197J




Temperature Chamber CT 253J RUSSELLS RB-32-33 38 38 38 Russells Temperature Test Chamber Model #RB-32-33,
I.D. 38"W X 38"D X 38"H,
O.D. 48"W X 74"D X 72"H,
Temperature Range: -65 to +170 Deg. C,
Touchscreen Control, Over and Under Temperature Protection, RS-232/IEEE,
Environmentally Friendly Refrigeration, Stainless Steel Interior,
1X 2.75" Dia. Side Feed-Thru Port,
Includes Window, Castors, Interior Light, Shelf,
Power: 208/230V, 3Ph,
Stock #253J




Temperature Chamber CT 217J THERMOTRON S-16 30 30 30 Thermotron Temperature Test Chamber Model S-16,
I.D. 30"W X30"D X 30"H,
O.D. 44"W X 36"D X 82"H,
Temperature Range: -70 to +170 Deg. C (Air Cooled),
Programmable Control, Over and Under Temperature Protection,
Environmentally Friendly Refrigerants, Stainless Steel Interior,
1X 3.75" Dia. Side Feed-Thru Port,
Includes Window, Interior Light, Castors, Shelf,
Power: 230V, 1Ph,
Stock #217J




Temperature Chamber CT 213J THERMOTRON SE-600-3-3 40 26 33 Thermotron Temperature Test Chamber Model SE-600-3-3,
I.D. 40"W X 26"D X 33"H,
O.D. 48"W X 68"D X 82"H
Temperature Range: -70 to +170 Deg. C,
Programmable Controller,
Environmentally Friendly Refrigerants, Stainless Steel Interior,
2X 3.75" Dia. Side Feed-Thru Ports,
Includes Window, Interior Light, Castors, Shelf,
Power: 208V, 3Ph, 70 Amps
Stock #213J




Temperature Chamber CT 195J THERMOTRON SE-300-2-2 24 26 28 Thermotron Temperature Test Chamber Model #SE-300-2-2,
I.D. 24"W X 26"D X 28"H,
O.D. 34"W X 68"D X 78"H,
Temperature Range: -70 to +170 Deg. C,
Programmable Control,
2X 3.75" Dia. Side Feed-Thru Ports,
Environmentally Friendly Refrigerants, Stainless Steel Interior,
Includes Window, Light, Castors, 1 Shelf,
Power: 208V, 3Ph, 70 Amps
Stock #195J

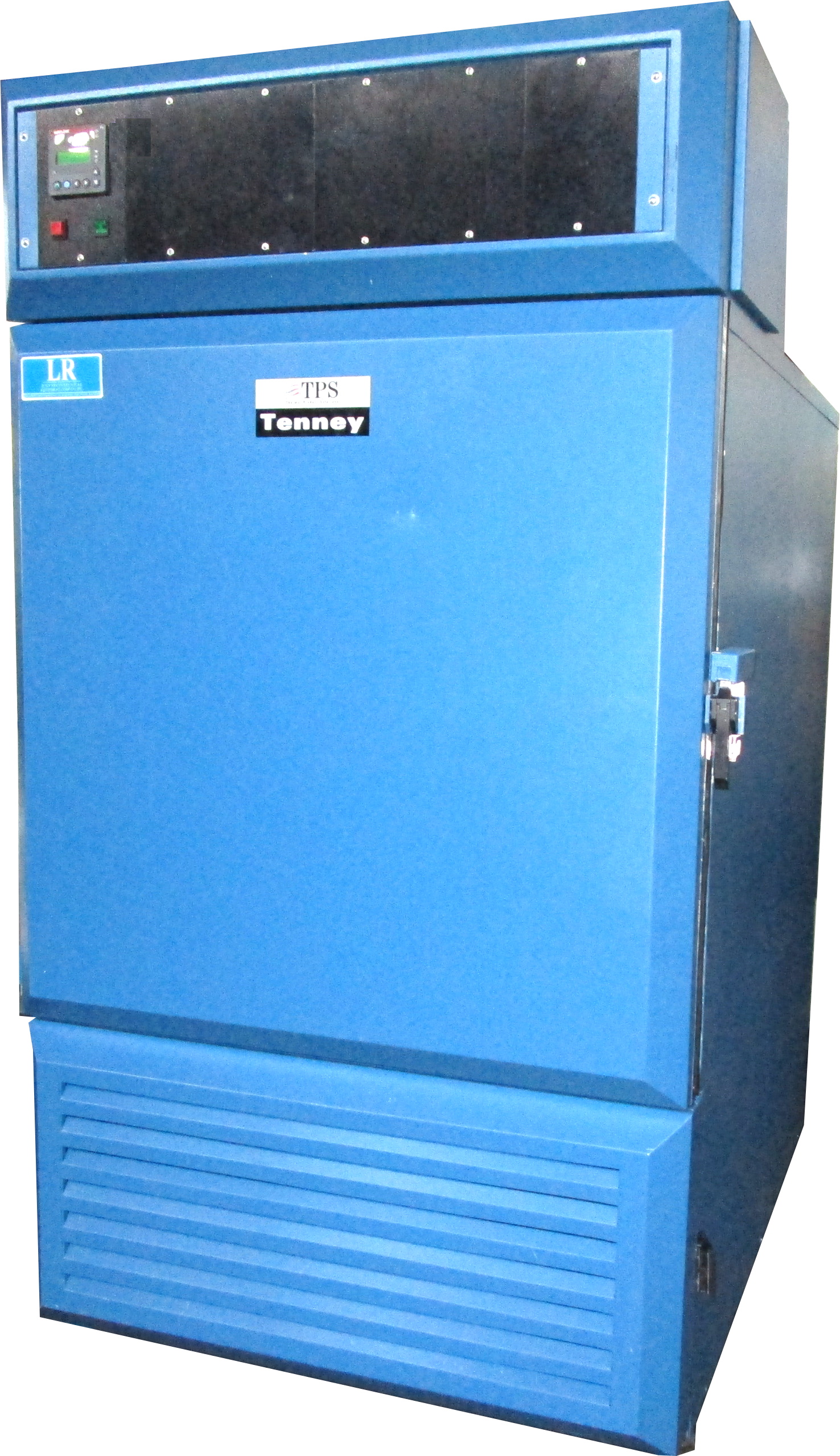

Temperature Chamber CT 214J TENNEY T30C 36 40 36 Tenney Temperature Test Chamber Model T30C
I.D. 36"W X 40"D X 36"H
O.D. 52"W X 69"D X 77"H
Temperature Range: -65 to +170 Deg. C (Air Cooled)
Programmer, Environmentally Friendly Refrigerants
Stainless Steel Interior
1X 2" Dia. Side Feed-Thru Port, 1X 6" Dia. Side Feed-Thru Port
Includes Shelf
Power: 208/230V, 1Ph, 50 Amps
Stock #214J




Temperature Chamber CT 211J TENNEY T-20RS 29.5 31 35 Tenney Temperature Test Chamber Model T-20RS
I.D. 29.5"W X 31"D X 35"H
O.D. 54"W X 59"D X 78"H
Temperature Range: -35 to +170 Deg. C (Air Cooled)
Programmer, Over Temperature Protection
Environmentally Friendly Refrigerants, Stainless Steel Interior
1X 3" Dia. Side Feed-Thru Port
Includes Window, Light, Shelf
Power: 230V, 1Ph, 45 Amps
Stock #211J




Temperature Chamber CT 206J CSZ Z-32-2-2-H/AC 38 38 38 CSZ Temperature Test Chamber Model Z-32-2-2-H/AC
I.D. 38"W X 38"D X 38"H
O.D. 48"W X 52"D X 78"H
Temperature Range: -30 to +170 Deg. C (Air Cooled)
Watlow Programmer, Over Temperature Protection
1X 6" Dia. Side Feed-Thru Port, 1X 3" Dia. Side Feed-Thru Port
Environmentally Friendly Refrigerants, Stainless Steel Interior
Includes Window, Light, Castors, Shelf
Power: 208V, 3Ph, 39 Amps
Stock #206J




Temperature Chamber CT 209J CSZ Z-16-2-2-H/AC 30 30 30 CSZ Temperature Chamber Model Z-15-2-2-H/AC
I.D. 30"W X 30"D X 30"H
O.D. 42"W X 58"D X 78"H
Temperature Range: -70 to +170 Deg. C (Air Cooled)
Programmer, Over Temperature Protection
Environmentally Friendly Refrigerants, Stainless Steel Interior
1X 4" Dia. Side Feed-Thru Port, 1X 2" Dia. Side Feed-Thru Port
Includes Window, Light, Castors, Shelf
Power: 230V, 3Ph, 37 Amps
Stock #209J




Temperature Chamber CT 205J THERMOTRON S-16 30 30 30 Thermotron Temperature Test Chamber Model S-16
I.D. 30"W X 30"D X 30"H
O.D. 46"W X 57"D X 81"H
Temperature Range: -70 to +170 Deg. C (Air Cooled)
Watlow Control, Over and Under Temperature Protection
Environmentally Friendly Refrigerants, Stainless Steel Interior
4" Dia. Side Feed-Thru Port
Includes Window, Light, Castors, Shelf
Power: 230V, 3Ph 26 Amps
Stock #205J




Temperature Chamber CT 135J THERMOTRON S-4 20 20 20 Thermotron Temperature Test Chamber Model S-4
I.D. 20"W X 20"D X 20"H
O.D. 31"W X 41"D X 79"H
Temperature Range: -70 to +170 Deg. C (Air Cooled)
New Programmer, Over Temperature Protection
Stainless Steel Interior, Environmentally Friendly Refrigerants
4" Dia. Side Feed-Thru Port
Includes Window, Light, Castors, Shelf
Power: 480V, 3Ph, 10 Amps
Stock #135J




Temperature Chamber CT 164J THERMOTRON S-32C 38 38 38 Thermotron Temperature Chamber Model S-32C
I.D. 38"W X 38"D X 38"H
O.D. 56"W X64"D X 100"H
Temperature Range: -70 to +170 Deg. C (Air Cooled)
New Watlow Control, Over and Under Temperature Protection
Stainless Steel Interior, Environmentally Friendly Refrigerants
6" Dia. Side Feed-Thru Port
Includes Window, Light, Castors, Shelf
Power: 480V, 20 Amps, 3Ph, 60Hz
Can Be Quoted At Lower Voltages - Please Inquire
Stock #164J




Temperature Chamber CT 179J THERMOTRON S-32C 38 38 38 Thermotron Temperature Chamber Model S-32C
I.D. 38"W X 38"D X 38"H
O.D. 56"W X 64"D X 100"H
Temperature Range: -70 to +170 Deg. C
Watlow #F-4 Control, Over and Under Temperature Protection
Stainless Steel Interior, Environmentally Friendly Refrigerants
6" Dia. Side Feed-Thru Port
Includes Window, Light, Castors, Shelf
Power: 480V, 20 Amps, 3Ph
Can Be Quoted At Lower Voltages - Please Inquire
Stock #179J




Temperature Chamber CT 169J THERMOTRON S1.2C 16 11 12 Thermotron Temperature Chamber Model S1.2C
I.D. 16"W X 11"D X 12"H
O.D. 27"W X 24"D X 77"H
Temperature Range: -65 to +170 Deg. C
Watlow Control, Over and Under Temperature Protection
2" Dia. Side Feed-Thru Port
Stainless Steel Interior, Environmentally Friendly Refrigerants
Includes Shelf
Power: 120V, 1.5 Amps
Stock #169J




Temperature Chamber CT 156J ASSOCIATED SK-3108 24 24 24 Associated Temperature Test Chamber Model SK-3108
I.D. 24"W X 24"D X 24"H
O.D. 55"W X 36"D X 70"H
Temperature Range: -70 to +170 Deg. C (Air Cooled)
New Programmer, Over and Under Temperature Protection
4" Dia. Side Feed-Thru Port
Stainless Steel Interior, Environmentally Friendly Refrigerants
Includes Window, Light, Castors, Stand
Power: 208V, 1Ph
Stock #CT-155J




Temperature Chamber CT 155J ASSOCIATED SK-3108 24 24 24 Associated Temperature Test Chamber Model SK-3108
I.D. 24"W X 24"D X 24"H
O.D. 55"W X 36"D X 70"H
Temperature Range: -70 to +170 Deg. C (Air Cooled)
New Programmer, Over and Under Temperature Protection
4" Dia. Side Feed-Thru Port
Stainless Steel Interior, Environmentally Friendly Refrigerants
Includes Window, Light, Castors, Stand
Power: 208V, 1Ph
Stock #CT-155J




Temperature Chamber CT 198J THERMOTRON SE-600-3-3 40 26 33 Thermotron Temperature Chamber Model SE-600-3-3,
I.D. 40"W X 26"D X 33"H,
O.D. 48"W X 68"D X 82"H,
Temperature Range: -70 to +170 Deg. C (Air Cooled),
Progrmmable Control, Over Temperature Protection,
Environmentally Friendly Refrigerants, Stainless Steel Interior,
2X 3.75" Dia. Side Feed-Thru Ports,
Includes Window, Interior Light, Castors, Shelf,
Power: 208V, 3Ph, 60 Amps,
Stock #198J




Temperature Chamber CT 147J TESTEQUITY 1020S 40 25 34 TestEquity Temperature Test Chamber Model 1020S
I.D. 40"W X 25"D X 34"H
O.D. 54"W X 54"D X 78"H
Temperature Range: -35 to +175 Deg. C (Air Cooled)
Watlow #F-4 Control, Over Temperature Protection
2X 4" Dia. Side Feed-Thru Ports, Stainless Steel Interior
Environmentally Friendly Refrigerants
Includes Window, Light, Shelf
Power: 208/230V, 3Ph, 30/34 Amps
Stock #147J




Temperature Chamber CT 146J TENNEY JR 16 11 12 Tenney Temperature Chamber Model JR
I.D. 16"W X 11"D X 12"H
O.D. 37"W X 23"D X 30"H
Temperature Range: -70 to +170 Deg. C
Programmer, New Compressors, Stainless Steel Interior
Environmentally Friendly Refrigerants
2" Dia. Side Feed-Thru Port
Power: 120V, 1Ph, 20 Amps
Stock #146J




Temperature Chamber CT 131J THERMOTRON S-8C 24 24 24 Thermotron Temperature Chamber Model #S-8C
Internal Dimensions: 24"W X 24"D X 24"H
External Dimensions: 40"W X 41"D X 71"H
Temperature Range: -70 to +170 Deg. C (Air Cooled)
Programmer, Over and Under Temperature Protection
2X 1.5" Dia. Side Feed-Thru Ports
Stainless Steel Interior, Environmentally Friendly Refrigerants
Includes Window, Light, Castors, 1 Shelf
Power: 208V, 3Ph, 20 Amps
Stock #131J




Temperature Chamber CT 124J THERMOTRON S-16 30 30 30 Thermotron Temperature Chamber Model S-16
Internal Dimensions: 30"W X 30"D X 30"H
External Dimensions: 49"W X 57"D X 85"H
Temperature Range: -70 to +170 Deg. C (Air Cooled)
New Programmer, Over and Under Temperature Protection
2X 6" Dia. Side Feed-Thru Ports
Stainless Steel Interior, Environmentally Friendly Refrigerants
Includes Window, Light, Castors, 1 Shelf
Power: 208V, 3Ph, 35 Amps
Stock #124J




Total Results: 151 [viewing 1 to 25]1234567
