Used Environmental Chambers > Temperature Humidity Chambers > CSZ > ZH32-2-H/AC
CSZ ZH32-2-H/AC | ZH322H/AC
| Categories | Climate Chambers, Production Chambers, Temperature Chambers, Temperature Humidity Chambers, Steady State Chambers |
|---|---|
| Class | CH |
| Stock No. | 300L |
| Manufacturer | CSZ |
| Model | ZH32-2-H/AC |
| Specs | Mech. refrigeration |
| Width - in. | 38 |
| Depth - in. | 38 |
| Height - in. | 38 |
| Temperature Range | -35°C to 170°C |
|---|---|
| Temperature Range | -31.00°F to 338.00°F |
| Humidity Range | 20% to 95% |
| Voltage | 208 |
| Phase | 3 |
| Amperes | 31 |
| Spec Sheet |  |
| Additional files | 30 Point Checkout - Refurbishment |
| Description | CSZ Temperature Humidity Test Chamber Model #ZH32-2-H/AC SPECS: I.D. 38"W X 38"D X 38"H O.D. 54"W X 66"D X 88"H Temperature Range: -35 to +170 Deg. C - Air Cooled 20% to 95% Humidity - Has Water Recycling System Watlow Model #F4 Programmer CAN BE UPGRADED TO WATLOW F4T TOUCHSCREEN CONTROL PLEASE INQUIRE Over And Under Temperature Protection Environmentally Friendly Refrigerants, Stainless Steel Interior Includes Viewing Window, Interior Light, Castors, 1 Shelf 2.75" Dia. Side Feed-Thru Port Power: 208V, 3PH, 31 Amps Stock #300L |
|---|
| Images |

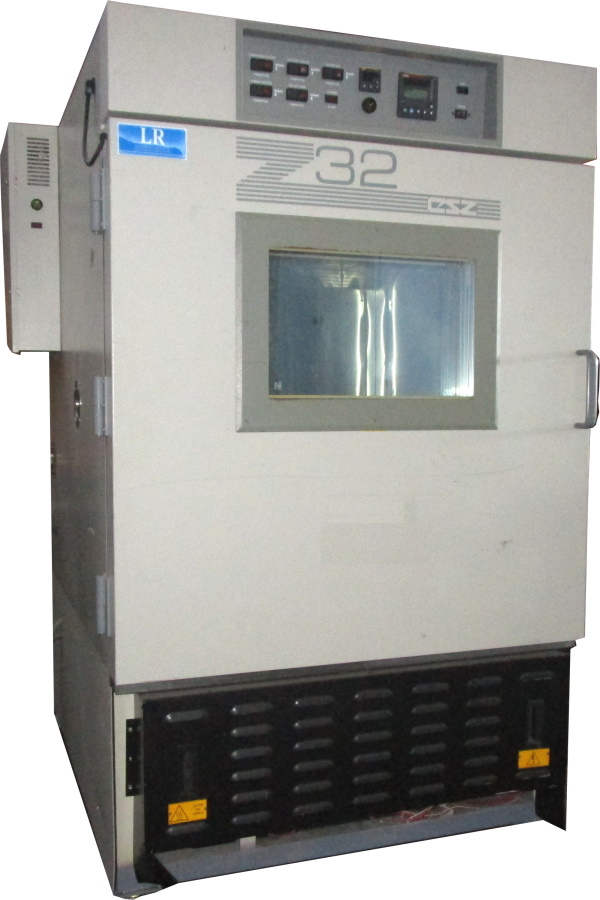

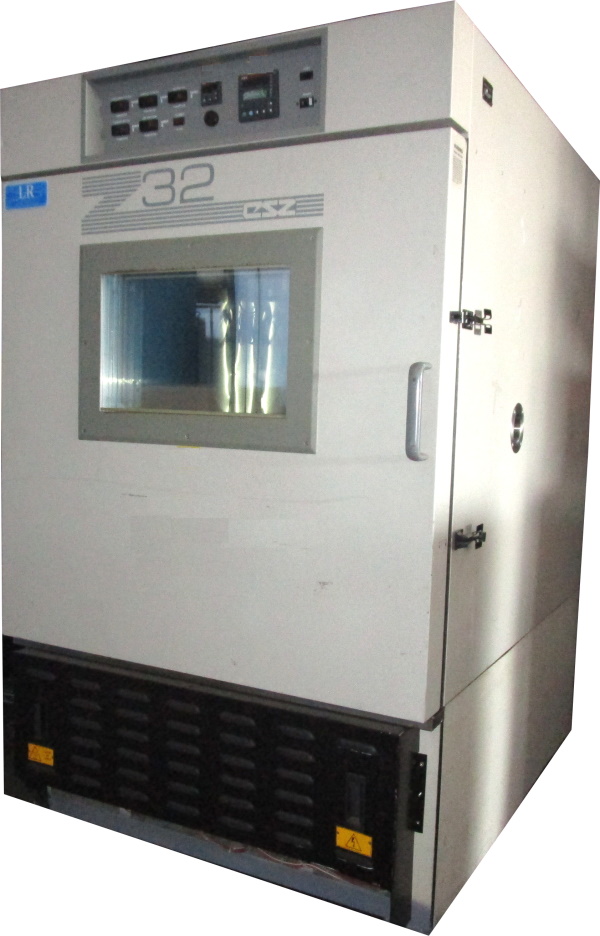

 CSZ Temperature Humidity Chamber Model ZH-32-2-H/AC  Side View of CSZ Temperature Humidity Chamber ZH-32-2-H/AC  Stainless Steel Interior of CSZ Chamber With 1 Shelf Included
|
|---|
