TENNEY T5ST-SPL | T5STSPL
This Item Has Been SOLD!
Check Our Listings For Comparable Units IN STOCK
Our Inventory Is Continuously Updated.
|

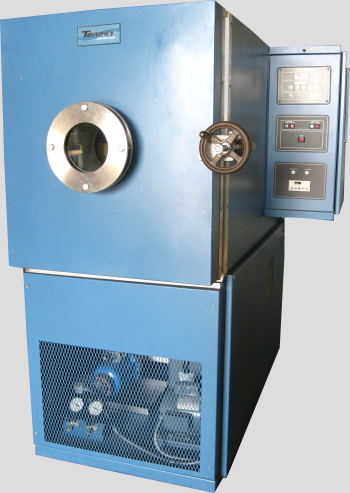

| Tenney Altitude Temperature Test Chamber Model T5ST-SPL, I.D. 20.75"W X 26"D X 24.75"H, 5 Cubic Ft. of Work Space Chamber Platen Measures 18" X 20", O.D. 48"W X 90"D X 74"H, Temperature Range: -65 to +100 Deg. C - LN2 Cooled, Note: LN2 Cold Vapor Trap is installed in the suction line. This Device protects the vacuum pump by preventing condensable gases such as water vapor from entering the vacuum pump oil., Altitude levels Range from Site to Approx. 250,000 ft. (.0153 Torr), Altitude conditions are attained by a vacuum system that utilizes an oil-filled, rotary vany type vacuum pump., Altitude / Pressure Conditions Are Uncontrolled Versatenn III Control, Over and Under Temperature Protection, Stainless Steel Interior, Environmentally Friendly Refrigerants, Includes Window, Light, Castors, Manual Power: 230V, 1Ph, 25 Amps Stock #215J |
| Category | Altitude Chambers |
|---|---|
| Class | CZ |
| Stock No. | 215J |
| Manufacturer | TENNEY |
| Model | T5ST-SPL |
| Specs | LN2 |
| Width - in. | 20.75 |
| Depth - in. | 26 |
| Height - in. | 24.75 |
| Temperature Range | -65°C to 100°C |
|---|---|
| Temperature Range | -85.0°F to 212.0°F |
| Voltage | 230 |
| Phase | 1 |
| Amperes | 25 |
