Used Environmental Chambers > Temperature Humidity Chambers > CSZ > ZPHS-8-1.5-H/AC
CSZ ZPHS-8-1.5-H/AC | ZPHS81.5H/AC

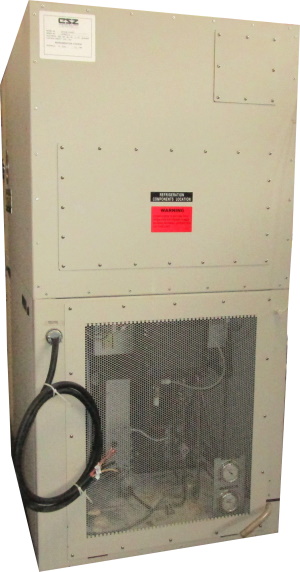

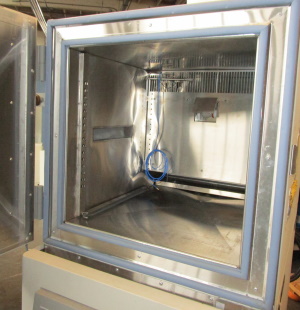

 CSZ Temperature Humidity Chamber  Stainless Steel Interior Of CSZ Temperature Humidity Chamber  Rear View Of This CSZ Temperature Humidity Chamber
|
| CSZ Temperature Humidity Test Chamber Climate Chamber Model #ZPHS-8-1.5-H/AC SHORT LEAD TIME! SPECS: I.D. 24"W X 24"D X 24"H O.D. 40"W X 61"D X 77"H Temperature Range: -34 to +190 Deg. C - Air Cooled 10% to 95% Humidity - Has Water Recycling System Watlow Model F-4 Programmer CAN BE UPGRADED TO THE WATLOW F4T TOUCHSCREEN CONTROL Temperature Limit Control Environmentally Friendly Refrigerants Stainless Steel Interior 1 Shelf Included 1X 3.75" Dia. Feed-Thru Port 2X 12" X 2" Dia. Alternate Side Feed-Thru Ports Power: 208V, 3Ph, 28 Amps Stock #386L |
| Categories | Climate Chambers, Production Chambers, Temperature Chambers, Temperature Humidity Chambers |
|---|---|
| Class | CH |
| Stock No. | 386L |
| Manufacturer | CSZ |
| Model | ZPHS-8-1.5-H/AC |
| Specs | Mech. refrigeration |
| Width - in. | 24 |
| Depth - in. | 24 |
| Height - in. | 24 |
| Temperature Range | -34°C to 190°C |
|---|---|
| Temperature Range | -29.20°F to 374.00°F |
| Humidity Range | 10% to 95% |
| Voltage | 208 |
| Phase | 3 |
| Amperes | 28 |
| Spec Sheet |  |
| Additional files | Temperature Test Chart |
| Humidity Test Results |
