Yamato DNE Standard Series Mechanical Convection Ovens
DNE400, DNE910
LRE provides high-performance, energy-saving, programmble Energy Saving, forced convection ovens.
Yamato DNE Standard Series Mechanical Convection Ovens are equipped with a simple key input system and a multi-functional controller. The DNE series represents forced convection Energy Saving oven. They achieve an energy-saving rate of 30% to 40% compared to previous models.
- 16-segment programming is possible.
- Safety functions including self-diagnostic function are enriched.
- Functions are expanded with a wind-velocity changing device, an external communication device, a temperature output terminal etc.
- Possible to stack the models 400/410 and 600/610, one over the other.
| Model | |||
| 400 |
910 | ||
| Operating Temperature Range | |||
| Room temp. +5°C to 210°C |
|||
| Temp. uniformity | |||
| ±2.0°C (at 210°C) | |||
| Internal Capacity | |||
| 3.2 cu ft | 19.1 cu ft | ||
DNE400, DNE600

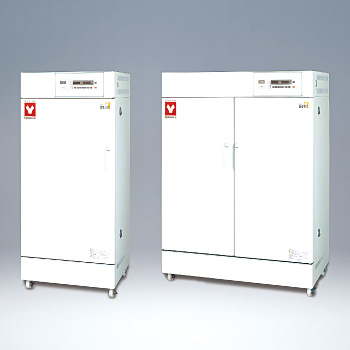

DNE810, DNE910
Specifications
| DNE400 | DNE910 | |
|---|---|---|
Performance |
||
| Circulation method | Forced air circulation | |
| Operating temperature range | Room temp. +10 to 210°C | |
| Temp. adjustment accuracy | ±0.5°C (at 210°C) | |
| Temp. uniformity | ±2.0°C (at 210°C) | |
| Max. temp. reaching time | Approx. 60 min. | |
| Components | ||
| Interior/Exterior material | Stainless steel SUS 304/Electro-galvanized steel sheet with epoxy and melamine resin baking finish | |
| Heat insulating material | Glass wool | |
| Heater | Stainless pipe heater, 1.1 kW |
Stainless pipe heater, 1.5 kW×2 |
| Fan Type | Scirocco fan | |
| Motor | Condenser type,10W | Condenser type,30W×2 |
| Cable hole/Air in-take hole | 1.2" I.D. (right side) each 1 pc. | |
| Exhaust port | 1.2" I.D.×2 (top) | 1.2" I.D.×2 (back) |
| Controller | ||
| Temp. controller | PlD control by microprocessor | |
| Temp. setting method | Digital setting with ▲ ▼ key | |
| Temp display method | Digital display by Orange LED (4 digit) | |
| Timer/Min.division | 0 min. to 999 Hrs. 59 min. /1 min. | |
| Operation function Program mode |
Fixed temperature operation, Program operation, Auto start, Auto-stop, Program operation; Maximum 32 steps, Repeat function |
|
| Additional functions | Timer, Integration time function (max. 49,999 Hrs.), Calibration offset function, Time display | |
| Heater circuit control | Triac zero-cross control | |
| Sensor | K-thermocouple | |
| Safe Device | ||
| Safety countermeasures | Self diagnosis functions (temp. sensor abnormal, Heater disconnection, SSR- short, Main relay abnormal, Automatic overheating prevention), Key lock function, Independent overheat prevention, Electric leakage breaker with over current protection | |
| Standard | ||
| Internal dimensions (W×D×H in) External dimensions(W×D×H in) Internal capacity |
17.7" × 17.7" × 17.7" 22.8" × 25.4" × 33.9" 3.2 cu ft |
42.9"×19.7" × 39.4" 48" × 27.4" × 65.9" 19.1 cu ft |
| Shelf plate with standard load | Approx. 33 lbs/piece | |
| Shelf rest step number | 11 steps | 29 steps |
| Shelf rest pitch | 1.2" | |
| Power source 50/60Hz | AC 115V single phase 10.5A |
AC 200V/220V single phase 16A/14.5A |
| weight | Approx. 132 lbs | Approx. 392 lbs |
| Accessories | ||
| Shelf plate | Stainless steel, 2 pcs. | Stainless steel, 8 pcs. |
| Shelf bracket | 4 pcs. (1 pair - 2 pcs. is fixed) | 16 pcs. (2 pairs are fixed) |
| Optional Accessories | ||
| Stand / Fitting for stacking / Additional shelf plate / Cable hole (1"/2") / Observation window (16"/24") External communication terminal (RS485) / Adapter for external communication / Temp. output terminal (4～20mA) / Time up out-put terminal / Out-put terminal for alarm device etc. | ||
- The performance shown here is the value under the condition of the ambient temperature of 23°C±5°C, humidity of 65%RH±20%.
- The projection is not included for Internal dimensions and External dimensions.

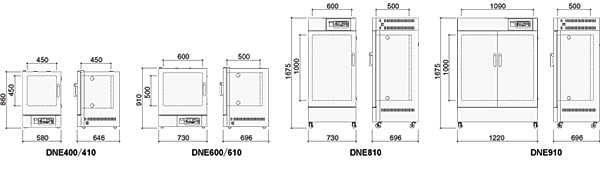

Dimensions
