Gravity Ovens

Yamato DVS402C, DVS602C, DX302C, DX402C, DX602C

In a Gravity Oven, heat is allowed to flow naturally throughout the oven using diffusion (convection) of heat over time. Gravity Ovens are usually smaller in size to utilize this method of heating.

New Yamato Gravity Ovens. DVS402C and DVS602C

DVS402C, DVS602C

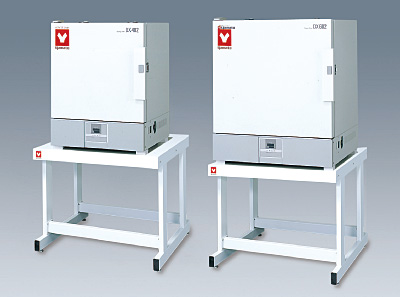

New Yamato Gravity Ovens. DX302C, DX402C, DX602C

DX302C, DX402C, DX602C


Pricing and Specifications

DVS402C DVS602C DX302C DX402C DX502C
Price $2050 $2580 $1280 $1670 $2220
Performance
Circulation method Natural convection
Operating temperature range Room temp.+5 to 260°C (no load at ambient temperature of 23°C) 40 to 300°C 40 to 280°C
Temp. control accuracy ±1.0°C(at 260°C : exhaust port closed) ±1.0°C(at 300°C : exhaust port closed) ±1.0°C(at 280°C : exhaust port closed)
Temp. uniformity ±5.0°C(at 260°C : exhaust port closed) ±10.0°C(at 300°C : exhaust port closed) ±10.0°C(at 280°C : exhaust port closed)
Max. temp. reaching time Approx. 90 min. (room temperature +5°C to 260°C) Approx. 45 min. Approx. 60 min. Approx. 80 min.
Components
Interior material Type 304 Stainless steel
Exterior material Cold rolled steel plate with melamine resin baking finish
Heat insulating material Rock wool
Heater SUS pipe heater Iron-chrome wire heater Iron-chrome wire heater
1.2 kW 1.36 kW 0.9 kW 1.5 kW
Exhaust port/Cable hole 1.2" I.D.×2 pcs.(the top) / 1.2" I.D.×1 pc.(right side) 1.2" I.D.×2 pcs.(the top)
Observation window 9.8" × 11", Tempered glass (0.12" thickness) none
Controller
Temp. controller 3 pattern-program controller, PlD control by microprocessor PlD control by microprocessor
Temp. setting method Operation menu key and Digital setting by ▲ ▼ key Digital setting by ▲ ▼ key
Temp display method Measurement temp. : Digital display by green LED Setting temp. : Digital display by red LED
Timer 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min.
Operation function
Program mode
Fixed temperature operation, Program operation, Auto start, Auto stop, Quick Auto-stop,
Program operation : 3 pattern, 30 steps (30 steps×1, 15 steps×2, 10 steps×3)
Fixed temperature operation, Program operation, Auto start, Auto stop, Quick Auto-stop,
Additional functions Calibration off-set function, Key lock , Uninterruptible power for memory, Pattern repeat function Temp. memory
Heater circuit control SSR control Triac zero-cross control
Sensor K-thermocouple Platinum resistance bulb
Safe Device
Safety countermeasures Failure of sensor, heater SSR, memory, internal communication, temperature inputting circuit, Automatic overheating prevention device, overheating prevention device, measurement temperature error, Circuit breaker, Overheat prevention device Temperature sensor error, Temperature input circuit error, Auto overheating prevention, overheating prevention device, Measured temperature error, Circuit breaker, Hydraulic standalone overheating prevention device
Standard
Internal dimensions (W×D×H in) 17.7" × 19.3" × 17.7" 23.6" × 21.3" ×19.7" 11.8" × 12.2" × 11.8" 17.7" × 16.1" × 15.7" 23.6" × 20.0" ×19.7"
External dimensions (W×D×H in) 22" × 23.7" × 32.3" 28" × 25.6" × 34.3" 15.7" × 17.3" × 24.8" 21.6" × 21.2" × 28.7" 27.6" × 25.2" × 32.7"
Internal capacity 3.5 cu ft 5.7 cu ft 1.0 cu ft 2.6 cu ft 5.4 cu ft
Shelf plate with standard load Approx. 33 lbs/piece
Shelf rest step number 9 steps 12 steps 6 steps 9 steps 12 steps
Shelf rest pitch 1.2" 1.4"
Power source 50/60Hz 115V
single phase
11A
115V
single phase
12.5A
115V
single phase
8.5A
115V
single phase
13.5A
Weight Approx. 106 lbs Approx. 139 lbs Approx. 51 lbs Approx. 84lbs Approx. 123lbs
Accessories
Shelf plate Stainless steel, 2 pcs.
Shelf bracket 4 pcs.
Optional Accessories
  Stand / Fitting for stacking / Additional shelf plate / Cable hole/ Temp. output terminal / Time up out-put terminal etc. Independent overheating prevention / Electric leakage breaker / Stand / Additional shelf plate / Cable hole
